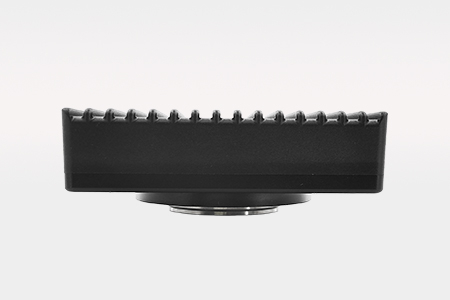

12mp Camera VC1200
Model：12mp Camera VC1200
Category：USB3.0 Camera
Brand：Oi-Instruments
Contact name：Orlenda Tan
Telephone：18962123364
Email：orlenda@oi-instruments.com
◆ 12mp resolution;
◆ 1 / 1.7 Inch Sony cmos image sensor is adopted;
◆ good color reproduction;
◆ low noise;
◆ cost effective;
◆ powerful image software matched;
Specifications
| Model | VC1200 |
| Sensor | Sony IMX226 |
| Sensor Size | 1/1.7" |
| Resolution | 4000 ×3000 |
| Pixel Size | 1.85µm ×1.85µm |
| Exposure Time | 50µs - 10s |
| Exposure Mode | Auto/Manual/Regional Exposure |
| Gain | 1 x - 10 x |
| White Balance | Auto/Manual |
| Shutter | Rolling Shutter |
| Color/Mono | Color |
| Binning Mode | 1×1, 2×2, 3×3 |
| Frame Rate | 20FPS@ 4000 ×3000 |
| 40FPS@ 2000 ×1500 | |
| 70FPS@ 1328 ×1000 | |
| A/D Transfer | 12bit |
| Built-in Image Cache | 1Gb |
| Read-out Noise | 2.5e- |
| Full Well | 12ke- |
| Dynamic Range | 71db, 4800:1 |
| Quantum Efficiency | 67%@536nm |
| Lens Mount | C-mount |
| Data Interface | USB3.0 |
| Power Supply | USB3.0 Cable |
| Power Consumption | <1.8W |
| Dimension (LxWxH) | 80mm x 62mm x 39mm |
| Weight | 300g |
| Image Format | RAW / JPG / BMP / PNG / TIF |
| Software Interface | DirectShow / TWAIN/ImageJ/μManger/MATLAB/LabVIEW |
| Software Matched | Image Studio |
