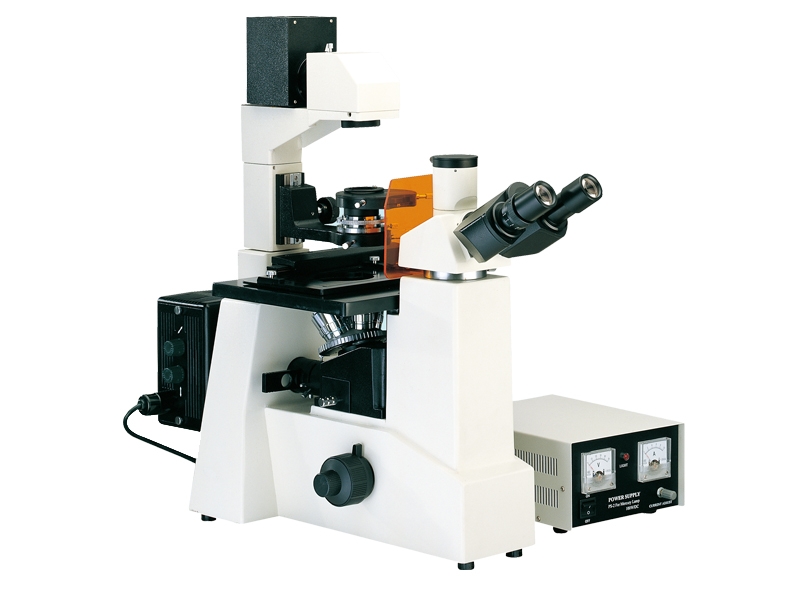

    Inverted Plan Achromatic Fluorescent Microscope FMI-1 with Phase Contrast

    Model:Inverted Plan Achromatic Fluorescent Microscope FMI-1 with Phase Contrast

    Category:Fluorescent Microscope

    Brand:Oi-Instruments

    Contact name:Orlenda Tan

    Telephone:18962123364

    Email:orlenda@oi-instruments.com

    WeChat

    FMI-1 Inverted & Reflected Fluorescence Microscopes is composed with inverted microscope and reflected fluorescence microscope, equipped with long working distances plan achromatic objectives and wide field eyepieces, you can use long working distance phase contrast objectives and special long working distance condenser with phase contrast unit when inverted observation, and change the fluorescence excitation system freely. The microscope has clear image, wide field, compact framework, beautility sculpt and comfortable operation etc. It's mainly applied to observe the living cell and tissue, liquid and deposits etc, also to observe transparent living without staining and fluorescence slice up, it is the ideal instrument for researching in biology, cells cytology, oncology, genetics, immunology etc. The microscope can be used for scientific researching, medical treatment, epidemic prevention and animal husbandry etc.

    Specifications
    ModelFMI-1
    EyepieceWide field eyepiece WF10X(¦µ20mm)
    ObjectiveLong working distance plan achromatic objectives PL L 10X/0.25
    Long working distance plan achromatic objectives PL L 25X/0.40
    Long working distance plan achromatic objectives PL L 40X/0.60
    Long working distance plan achromatic phase contrast objective PL L 10X/0.25 PHP2
    Long working distance plan achromatic phase contrast objective PL L 25X/0.40 PHP2
    Long working distance plan achromatic phase contrast objective PL L 40X/0.60 PHP2
    Eyepiece tubeTrinocular (Inclination of 30°, 100% image light for photography capable)
    Focus system Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
    NosepieceQuintuple (Ball bearing inner locating)
    StageDouble layer mechanical (Size: 224mmX208mm, moving range: 112mmX79mm)
    FilterBlue filter
    Green filter
    Shelf of specimenMatch to install ¦µ68mm or 77mmX29mm culture utensil
    Match to install 82mmX57mm culture utensil
    Match to install 128mmX85mm 96 holes culture utensil
    Reflected fluorescence systemMercury lamp house 100W/DC
    Power supply unit:AV:110V or 220V
    Fluorescence filter system B exciton wavelength:450~490nm
    Fluorescence filter system G exciton wavelength:495~555nm
    Fluorescence filter system UV exciton wavelength:320~380nm
    Fluorescence filter system V exciton wavelength:380~415nm
    Turnplate phase contrast unitCentering telescope
    Condenser Rack & pinion adjustable, NA=0.4,working distance: 50mm
    Optional accessories
    NameSort/Technique parameter
    EyepieceWide field  WF16X(¦µ11mm)
    Dividing 10X (¦µ20mm), 0.1mm/Div
    CondenserUltra long working distance,W.D.:70mm
    FilterYellow filter
    Fluorescence power supply100W fluorescence power supply(Wide voltage range and constant power and calculagraph)
    Phase contrasCompensation phase contrast
    CCD adapter0.4X
    0.5X
    1X
    0.5X with dividing 0.1mm/Div
