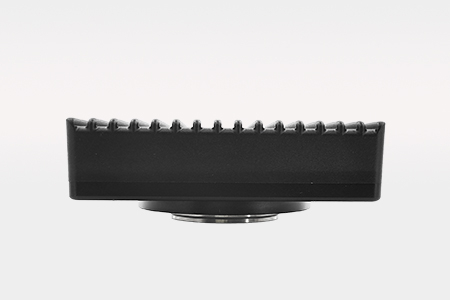

Mono High-sensitive 10mp Cooled Scientific Camera SD1000AM
Model：Mono High-sensitive 10mp Cooled Scientific Camera SD1000AM
Category：Cooled Scientific Camera
Brand：Oi-Instruments
Contact name：Orlenda Tan
Telephone：18962123364
Email：orlenda@oi-instruments.com
◆ 10mp resolution;
◆ 4/3 Inch Sony image sensor is adopted;
◆ mono sensor;
◆ low noise;
◆ powerful image software matched;
◆ two stage TEC cooling to 40 degrees below ambient;
Specifications
| Model | SD1000AM |
| Sensor | Sony IMX294 |
| Sensor Size | 4/3" |
| Resolution | 3792 × 2824 |
| Pixel Size | 4.630µm × 4.63µm |
| Exposure Time | 50µs - 120s |
| Exposure Mode | Auto/Manual/Regional Exposure |
| Gain | 1 x - 16 x |
| White Balance | Auto/Manual White/Black Balance |
| Shutter | Rolling Shutter |
| Color/Mono | Mono |
| Binning Mode | 1×1 |
| Frame Rate | 25FPS@3792×2824 |
| A/D Transfer | 14bit |
| Built-in Image Cache | 2Gb |
| Read-out Noise | 1.6e- |
| Full Well | 65ke- |
| Dynamic Range | 94db, 50000:1 |
| Quantum Efficiency | 88% |
| Cooling | Two Stage TEC Cooling |
| Cooling Temperature | 40℃below ambient |
| Data Interface | USB3.0 |
| Lens Mount | C-mount |
| Power Consumption | 25W |
| Power Requirement | 12V |
| Dimension (LxWxH) | 80mm x 80mm x 110mm |
| Weight | 1000g |
| Image Format | RAW / JPG / BMP / PNG / TIF |
| Software Interface | DirectShow / TWAIN/ImageJ/μManger/MATLAB/LabVIEW |
| Software Matched | Image Studio |
