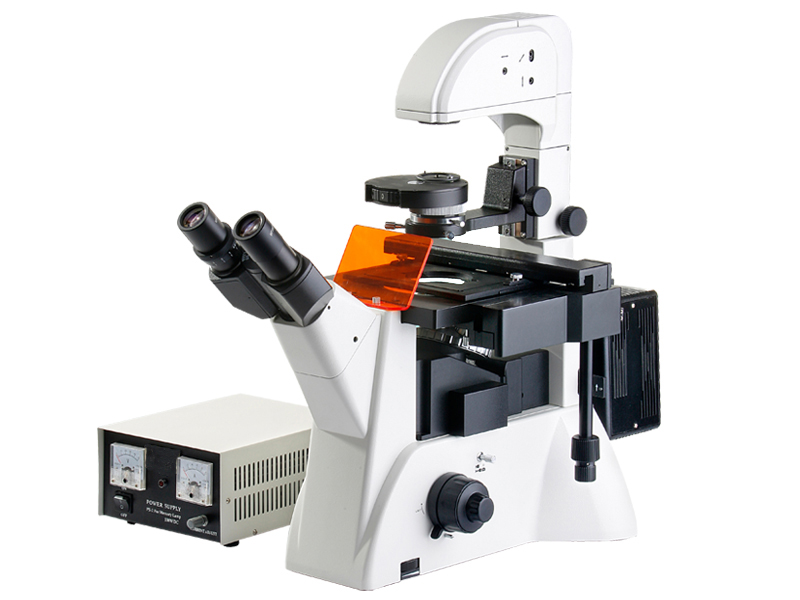

    Inverted Infinity Plan Achromatic Fluorescent Microscope FMI-2 with Phase Contrast

    Model:Inverted Infinity Plan Achromatic Fluorescent Microscope FMI-2 with Phase Contrast

    Category:Fluorescent Microscope

    Brand:Oi-Instruments

    Contact name:Orlenda Tan

    Telephone:18962123364

    Email:orlenda@oi-instruments.com

    WeChat

    FMI-2 Inverted fluorescent microscope is composed with Epi-fluorescent microscope and inverted microscope, equipped excellent UIS optical system and adopted long working distance plan achromatic objectives and wide field eyepieces. Compact and steady main frame body is embodiment for the shock resistance. The enable turning out or into condenser system is suited for observation in a high culture dish. The Epi-fluorescence microscope system is adopted modularization function design idea, so that adjust the fluorescence illuminating system and switching-over fluorescence filters safely and quickly. This is a sort of ideal optical instrument for micro observation in cell tissue and transmitted liquid tissue, even in dynamic observation in the culture dish tissue, can be applied in the fluorescence microscopy, such as biological pharmacy, medicine checking and measure, disease prevent and etc.

    Specifications
    ModelFMI-2
    EyepieceWide field WF10X(field number:¦µ22mm)
    Centering telescope
    Infinity plan
    achromatic objective
    ObjectivePLL 10X0.25  Work distance:4.3 mm,Cover glass thickness:1.2mm.
    PLL 20X0.40  Work distance:8.0 mm,Cover glass thickness:1.2mm.
    PLL 40X0.60  Work distance:3.5 mm,Cover glass thickness:1.2mm.
    Phase Contrast ObjectivePLL 10X0.25 PHP2 Work distance:4.3 mm,Cover glass thickness:1.2mm.
    PLL 20X0.40 PHP2 Work distance:8.0 mm,Cover glass thickness:1.2mm.
    PLL 40X0.60 PHP2 Work distance:3.5 mm,Cover glass thickness:1.2mm.
    Eyepieces tubeInclination angle is 45˚ and interpupillary distance is 53~75mm.
    Epi-fluorescentPower supply unit, 110V or 230V can be selected.
    illumination system100W/DC Mercury lamp is 100W/DC
    Fluorescent filters
    GroupTypeWavelength of excitation lightWavelength of emitted light
    UV+VUltraviolet light (UV)320nm~380nm435nm
    Violet light (V)380nm~415nm475nm
    B+GBlue light (B)450nm~490nm515nm
    Green light (G)495nm~555nm595nm
    Focus systemCoaxial coarse/fine focus, with tension adjustable and up stop, minimum division of fine focusing is 2μm.
     NosepieceQuintuple nosepiece
    Stage Fixed stage overall size is 227mmX208mm
    Glass rotundity stage overall size is Ф118mm
    Mechanical moving device, moving range is 77mm (longitudinal)X114mm (transverse)
    Culture dish holder 1Inside locating slot size: 86mm (W)X129.5mm (L), optional with a circular culture dish Ф90mm
    Culture dish holder 2Inside locating slot size: 34mm (W)X77.5mm (L), optional with a circular culture dish Ф68.5mm
    Culture dish holder 3Inside locating slot size:57mm (W)X82mm (L)  optional with a circular culture dish Ф60mm
    Culture dish holder  4 Inside locating slot size:29mm (W)X77.5mm (L)  optional with a circular culture dish Ф35mm
    Transmitted illumination systemTurnplate phase contrast condenser,  working distance is 55mm
    12V30W halogen, brightness enable control
    Frosted glass and blue , green filter
    Optional accessories
    yepiece10XDividing eyepiece(field number:¦µ22mm)    0.10mm/Div
    ObjectiveInfinity plan achromatic objective PL 5X/0.12 W.D26.1
    NosepieceSextupe (Backward ball bearing inner locating)
    CCD adapter0.4X
    0.5X
    1X
    0.5Xwith dividing 0.1mm/Div
