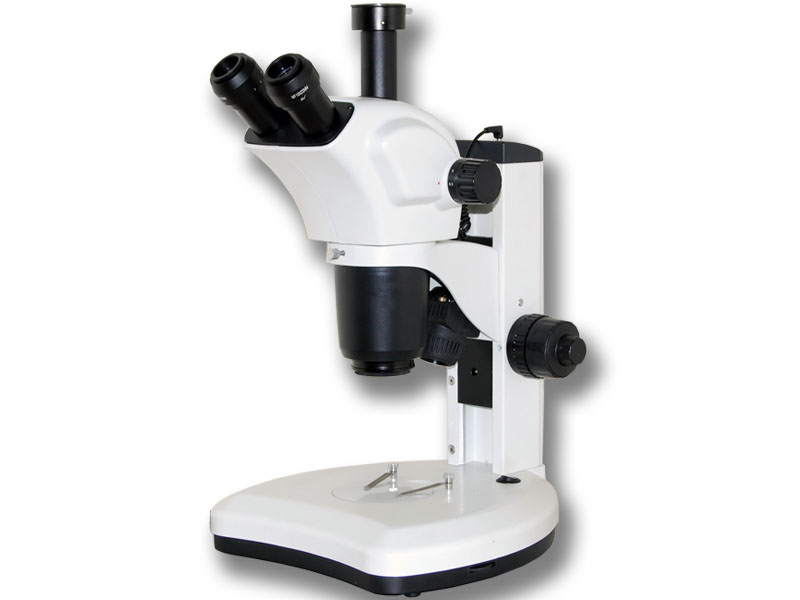

SM201 stereo zoom microscope is a kind of positive image instrument, using horizontal hand wheel variable magnification, with long working distance, clear and stable imaging, wide field of view, easy to operate and so on. It can be widely used in literature, education and research, agriculture and forestry geology, electronic precision machinery and other industries and departments.

Performance characteristics

★ Using continuous variable magnification working mode, the effective working distance is 110mm when observing the bright field, and the variable magnification range is 0.7 ~ 6.3 (variable magnification ratio 1:9).

★ 45° tilt visual observation, left and right visibility can be adjusted, adjustment range ±5 diopter; The pupil distance is adjustable, and the adjustment range is 48 ~ 75mm.

★ The lifting mirror body adjustment mechanism is guided by cylindrical roller, smooth transmission, light and flexible, while the rough movement can be adjusted.

★ Using bright white LED lighting, can choose transmission, reflection, transparent reflection lighting, independent electrical control, brightness can be adjusted at will.

★ Can be attached LED fluorescent illuminator for stereoscopic fluorescence observation.
