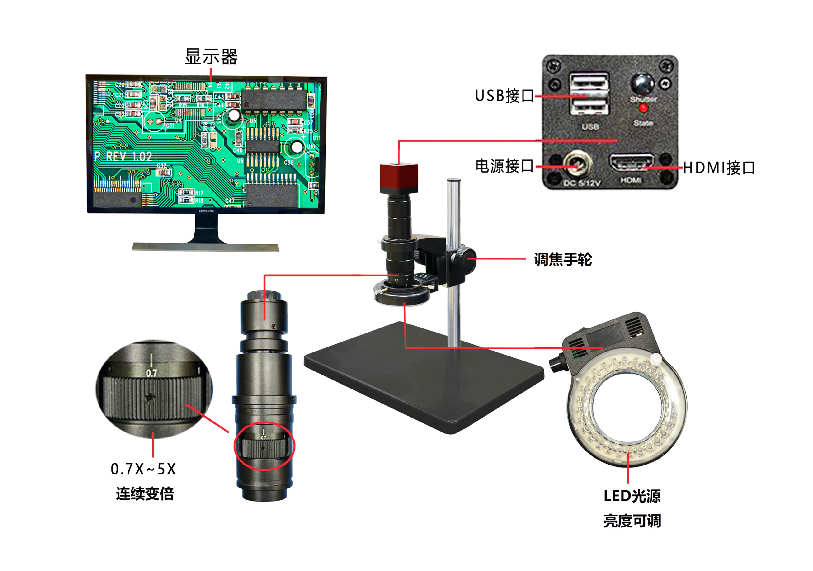

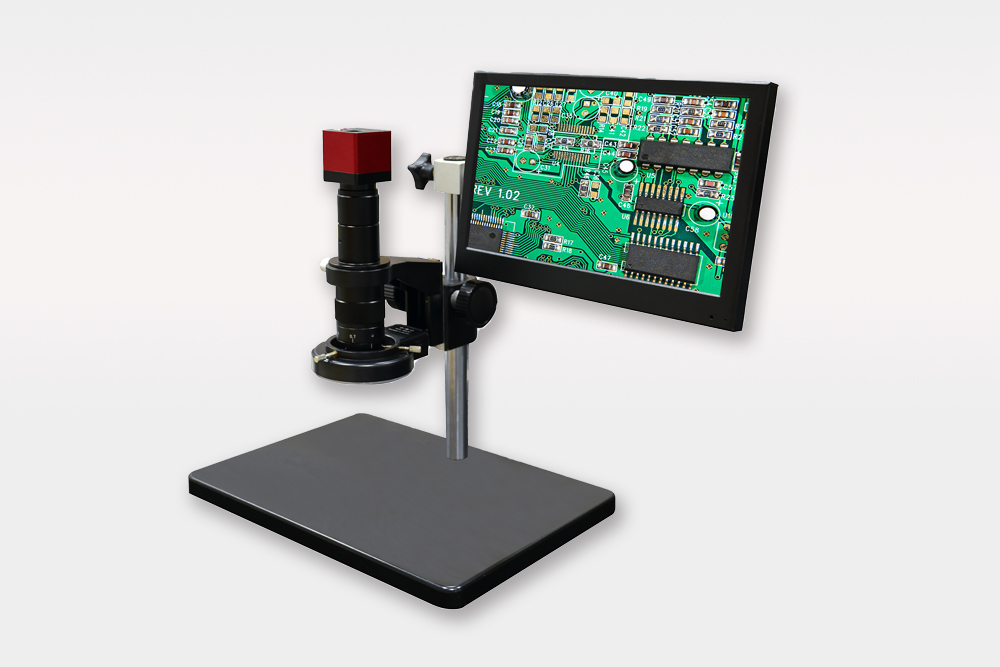

Zoom Video Microscope IM2000
Model：Zoom Video Microscope IM2000
Category：Video Microscope
Brand：Oi-Instruments
Contact name：Orlenda Tan
Telephone：18962123364
Email：orlenda@oi-instruments.com
IM2000 industrial electronic video microscope integrates the advantages of traditional microscope, clear image, high frame number, no drag phenomenon, meet the detection of modern biology, medicine, scientific research, electronic industry.
Specifications
| Model | IM2000 |
| Optical System | |
| Objective Magnification | 0.7X~4.5X |
| Image Magnification | 15X~110X (1/2" inch sensor) |
| View Field | 24mm~3.7mm (1/2" inch sensor) |
| CTV Interface | 0.5X |
| Working Distance | 100mm |
| Centre Distance | 140mm |
| Imaging System | |
| Camera Model | HD2002B |
| Resolution | 1920 x 1080 |
| Pixel size | 3.75μm x 3.75μm |
| Sensor Size | 1/2 inch |
| Data bi | 12bit |
| Shutter Mode | Rolling Shutter |
| Frame Rate | 60FPS@1920 x 1080 |
| Output Color | Color |
| Processor | ARM Cortex A7 dual-core @Max1.3GHz processor |
| Measure | NO |
| Capture | Support |
| Video | Support |
| Storage Method | U disk |
| Bracketry | |
| Focus | Coarse operation focusing handwheel, focusing handwheel tightness adjustable, lifting range 50mm |
| Column Stand | φ25*320 (mm) |
| Working Platform | 380*260 (mm) black metal |
| Light Source | LED ring light, Input voltage: AV100~240V vide voltage, the brightness is continuously adjustable |
| Displayer | 13.3" |
