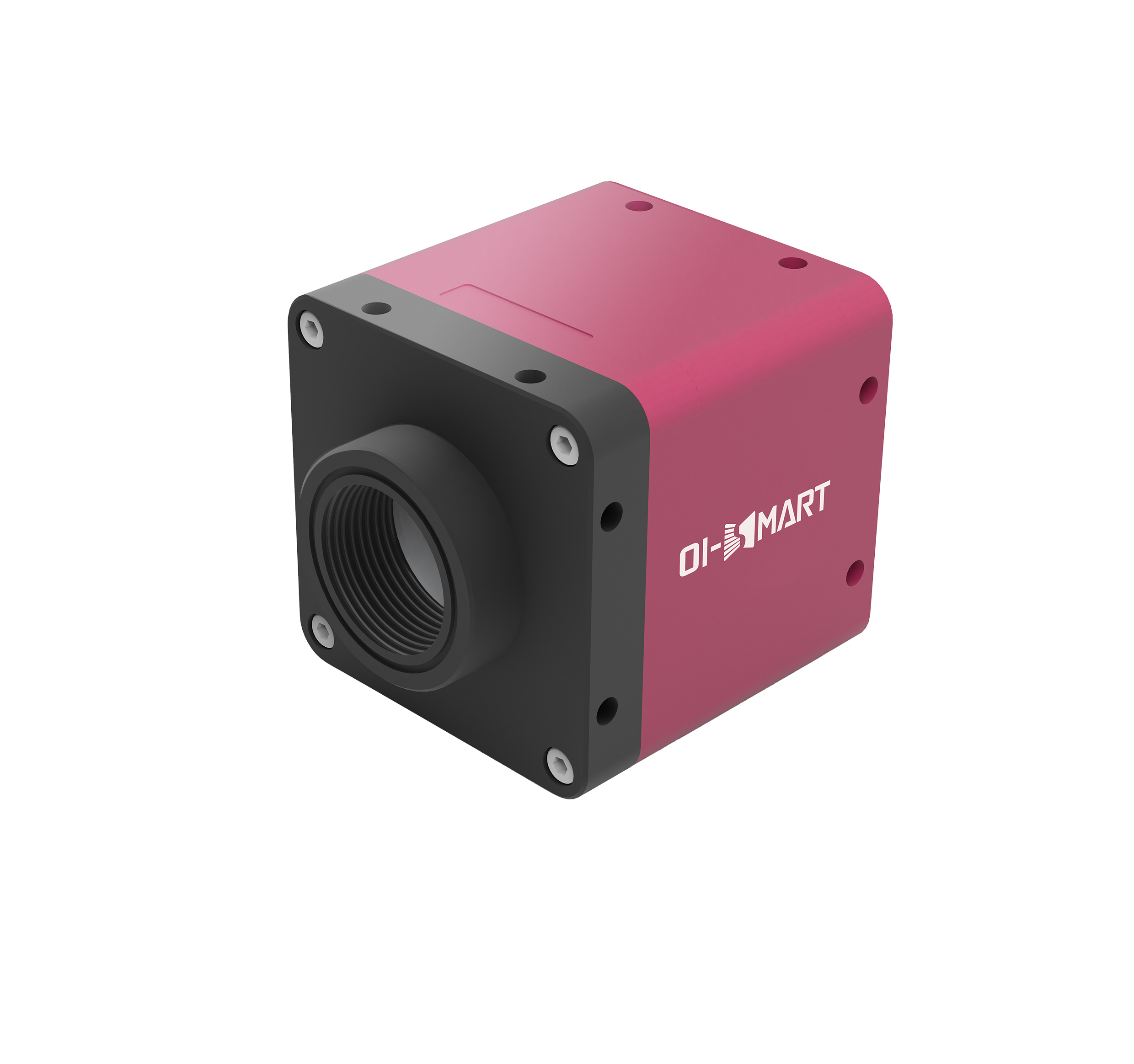

    GTC Series 3D Camera

    Model:GTC Series 3D Camera

    Category:3D Industrial Camera

    Brand:Oi-Instruments

    Contact name:Orlenda Tan

    Telephone:18962123364

    Email:orlenda@oi-instruments.com

    WeChat

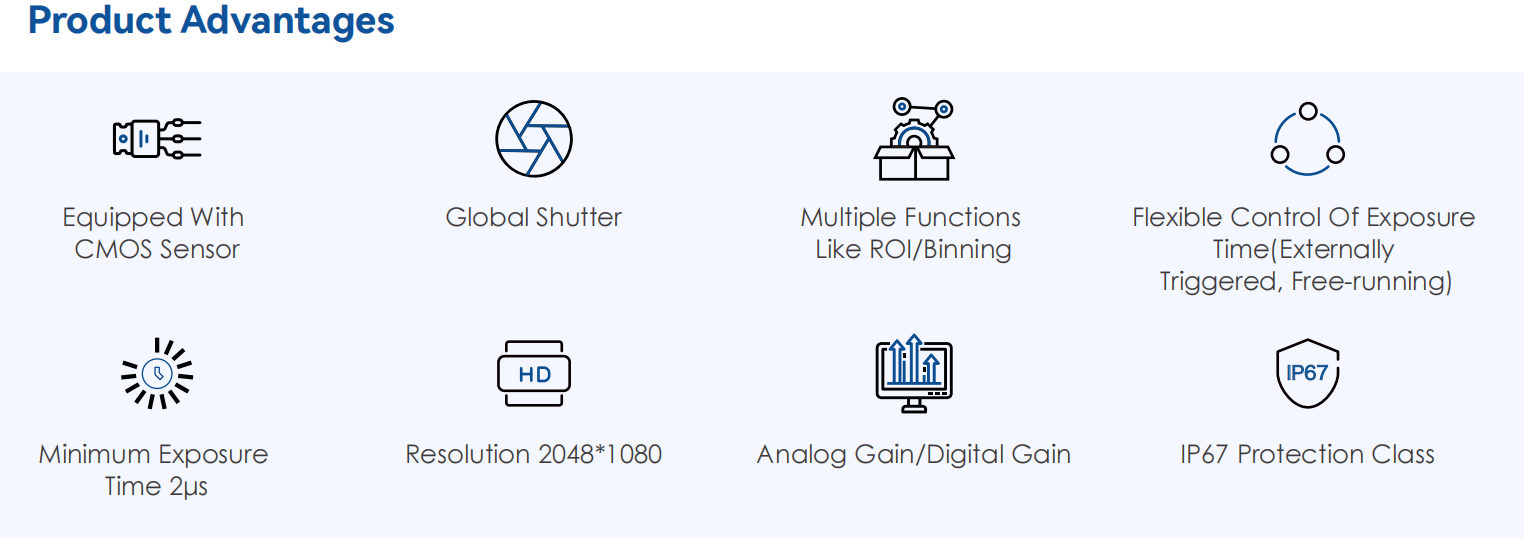

    GTC Series 3D Camera The GTC series 3D cameras are our self-developed high-speed and high-performance area-array cameras, which can easily handle various speed requirements for online measurement. It supports multiple encoder input formats including RS422 TTL, etc., greatly increasing the versatility of the device. The compact design is lightweight yet sturdy, and has IP67 protection class. This allows easy integration into different application scenarios, while maintaining reliable and stable operation in various harsh production environments.





    Specifications
    ModelGTC -E2048x1080 -C
    Resolution2048x1080
    Pixel size6μm x 6μm
    Image formatMonochrome
    Exposure modeGlobal exposure
    Exposure time2μs-0.5s
    Bit depth8bit
    Frame rate1414-47393¹
    Interface protocolGigabit Ethernet, GigE Vision 2.1 / GenICam
    Operating temperature0℃-40℃
    Power supply12V DC (±10%)
    Power (output)<10 W
    Lens InterfaceC-Mount
    Signal input2 opto-isolated single-ended inputs, 1 RS422 differential A/B incremental encoder input
    Signal output2 opto-isolated single-ended outputs
    Overall dimensions60mmx60mmx65mm
    Protection classIP67²
    caveat:
    1: The frame rate is affected by the exposure time and the number of rows exposed. The frame rate ranges from 1080 rows to 8
     rows for the minimum exposure time.
    2: Except for lens connector
