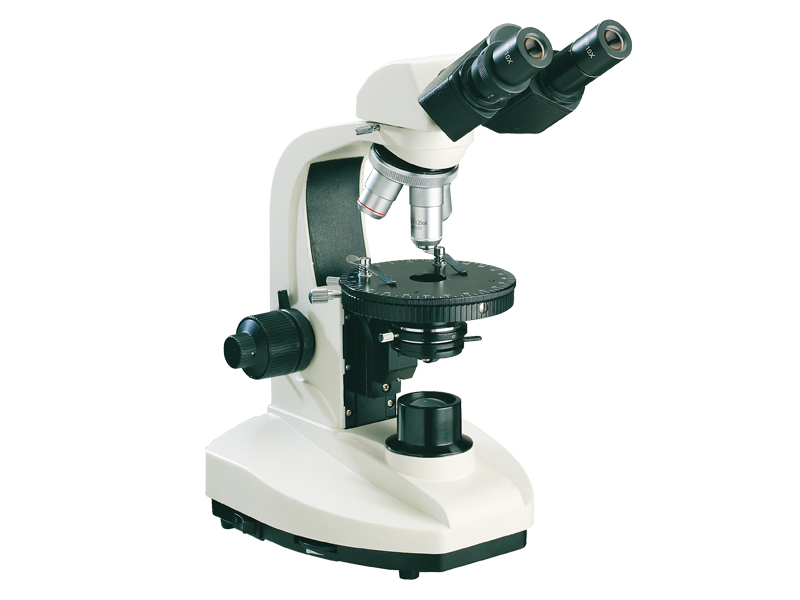

Binocular Achromatic Polarizing Microscope PM1350
Model：Binocular Achromatic Polarizing Microscope PM1350
Category：Polarizing Microscope
Brand：Oi-Instruments
Contact name：Orlenda Tan
Telephone：18962123364
Email：orlenda@oi-instruments.com
PM1350 series polarization microscopes are utilized polarize light to observe and research the polarize characteristic of the matter which have the double refraction .They can be used to medical inspection, such as the frame detail of the nerve fibre, the animal muscle, the plant fibre and the crystal of the tooth, bone, hair and alive cell etc. It can be observe the fine frame of the biochemistry salt crystal that the fine frame can't be observe for nature light.
▲ Equipped with wide field eyepieces and achromatic objectives, the field of view is widely and clear.
▲ Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
▲ 6V 20W halogen lamp transmission illumination brightness control.
| Model | PM1350 | PM1350A | |
| Eyepiece | Wide field WF10X(Φ18mm) | ||
| Objective | Achromatic objectives 4X/0.10 | ||
| Achromatic objectives 10X/0.25 | |||
| Achromatic objectives 40X/0.65 (Spring) | |||
| Achromatic objectives 100X/1.25(Spring, oil) | |||
| Eyepieces tube | Binocular, Inclination of 30˚ | ||
| Polarization analyzer | Sliding | ||
| Focus system | Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm. | ||
| Nosepiece | Quadruple (Backward ball bearing inner locating) | ||
| Stage | Rotatable stage(Diameter:¦µ120mm) | Double layer mechanical stage with (¦µ100mm) rotatable stage (Size：135mmX125mm Moving range：75mmX35mm) | |
| Abbe condenser | NA.1.25 Rack & pinion adjustable | ||
| Filter | Blue filter | ||
| Frosted filter | |||
| Polarizer | 360° rotatable stage | ||
| Collector | For illumination with halogen lamp With field diaphragm | ||
| Illumination unit | With polarizer,6V 20w, halogen lamp, adjustable brightness | ||
| Optional accessories | |||
| Name | Sort/Technique parameter | ||
| Eyepiece | Wide field WF16X(Φ11mm) | ||
| Dividing 10X(Φ18mm) 0.1mm/Div | |||
| Eyepieces tube | Monocular , 360˚rotatable, inclination of 30˚ | ||
| Trinocular, ,inclination of 30˚,observe and photograph at the same time | |||
| Nosepiece | Quintuple(Backward ball bearing inner locating) | ||
| Filter | Green filter | ||
| Yellow filter | |||
| CCD adapter | 0.4X | ||
| 0.5X | |||
| 1X | |||
| 0.5X with dividing 0.1mm/Div | |||
