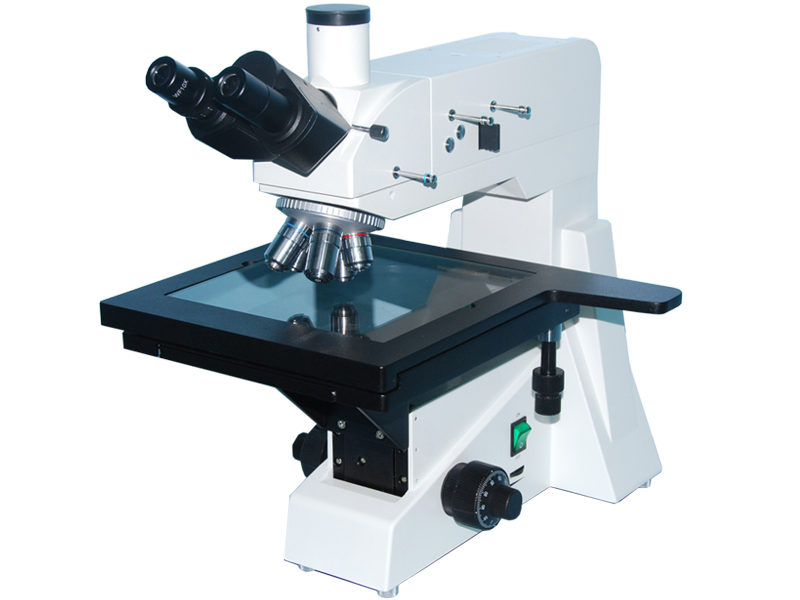

Plan Achromatic Metallurgical Microscope MM101
Model：Plan Achromatic Metallurgical Microscope MM101
Category：Metallurgical Microscope
Brand：Oi-Instruments
Contact name：Orlenda Tan
Telephone：18962123364
Email：orlenda@oi-instruments.com
MM-101 series reflected metallurgical microscopes are suitable to observe the microscopical surfaces of non-transparent object. They are equipped with large move range mechanical stages, reflected vertical illumination and set polarizer device in trinocular. They have clear and high-contrast picture beautiful sculpt, convenient control and etc. they are the ideal instrument in research work in metallography,mineralogy, precision engineering, electronics and etc. They are suitable for scientific research, teaching demonstration in the colleges and factory.
Features
▲ With plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.
▲ With large move range mechanical stages, can move quickly and slowly.
▲ Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 0.7μm.
▲ 6V 30W halogen lamp, adjustable brightness.
| Model | MM-101 | MM-101A |
| Eyepiece | Wide field WF10X(Φ18mm) | |
| Objective | Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12 | |
| Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25 | ||
| Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40 | ||
| Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60 | ||
| Plan achromatic objectives with long working distance (no cover glass) PL L80X/0.80 | ||
| Eyepieces tube | Trinocular, Inclination of 30˚, (Analyzer with field diaphragm to switch) | |
| Vertical illumination unit | 12V 30w halogen lamp, brightness control. | |
| Vertical illumination with field diaphragm, aperture diaphragm and polarizer,(Y,B,G)filter and frosted filter | ||
| Focus system | Stage adjustable, Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 0.7μm. | |
| Nosepiece | Quintuple(Frontward ball bearing inner locating) | |
| Stage | Three layer mechanical | Three layer mechanical |
| Size:250mmX230mm,movingrange:154mmX154mm | Size:280mmX270mm,movingrange:204mmX204mm | |
| Optional accessories | ||
| Name | Sort/Technique parameter | |
| Eyepiece | Wide field WF16X(Φ11mm) | |
| Dividing 10X(Φ18mm) 0.1mm/Div | ||
| Objective | Plan achromatic objectives with long working distance (no cover glass) PL L 50X/0.70 | |
| Plan achromatic objectives with long working distance (no cover glass) PL L 60X/0.75 (Spring) | ||
| Plan achromatic objectives with long working distance (no cover glass) PL L 100X/0.85 (Spring) | ||
| Plan achromatic objectives (no cover glass) PL 100X/1.25 (Spring, oil) | ||
| CCD adapter | 0.4X | |
| 0.5X | ||
| 1X | ||
| 0.5X with dividing 0.1mm/Div | ||
