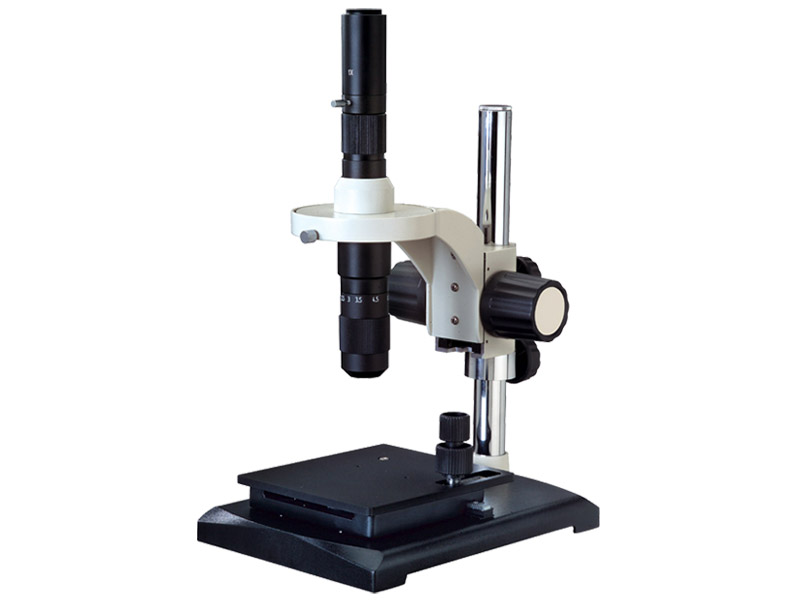

Monocular Zoom Microscope SM5/6 Series
Model：Monocular Zoom Microscope SM5/6 Series
Category：Stereo Microscope
Brand：Oi-Instruments
Contact name：Orlenda Tan
Telephone：18962123364
Email：orlenda@oi-instruments.com
SM-5/6 series monocular zoom microscopes, they have long working distance, clear and smooth image quality, convenience operation etc. They can be used for inspection of electro-industry product line and printed circuit board.
Feature
▲ Standard C mount design, connecting the camera directly.
▲ Digital & video camera, CCD camera and photography eyepiece can be chosen.
▲ SM-5 series are equipped with outside rotating optical body.
▲ SM-6 series are equipped with inside rotating optical body, annular LED illumination can be chosen.
▲ Objective range of zoom magnification 0.7X~4.5X.

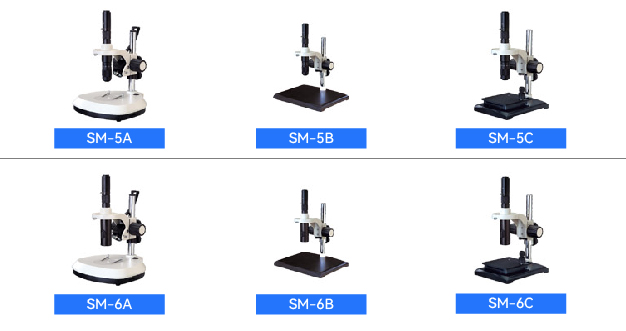

| Model | SM-5A | SM-5B | SM-5C | ||
| CCD adapter | 1X | ||||
| Objective | Objectives range of zoom magnification 0.7X~4.5X | ||||
| Working distance | 88mm | ||||
| Vertical effective movement | 10mm<=h<215mm | 10mm<=h<265mm | 10mm<=h<240mm | ||
| Base size | 260X290X55mm | 300X240X25mm | 240X180X25(mm)with movable stage, movement range:42X42(mm) | ||
| Illumination model | Reflected light source:12V10W halogen lamp with reflector cup and adjustable brightness Transmitted light source:12V10W halogen lamp and adjustable brightness | No light source | |||
| Model | SM-6A | SM-6B | SM-6C | ||
| CCD adapter | 1X | ||||
| Objective | Objectives range of zoom magnification 0.7X~4.5X | ||||
| Working distance | 88mm | ||||
| Vertical effective movement | 10mm<=h<215mm | 10mm<=h<265mm | 10mm<=h<240mm | ||
| Base size | 260X290X55mm | 300X240X25mm | 240X180X25(mm)with movable stage, movement range:42X42(mm) | ||
| Illumination model | Reflected light source:12V10W halogen lamp with reflector cup and adjustable brightness Transmitted light source:12V10W halogen lamp and adjustable brightness | No light source | |||
