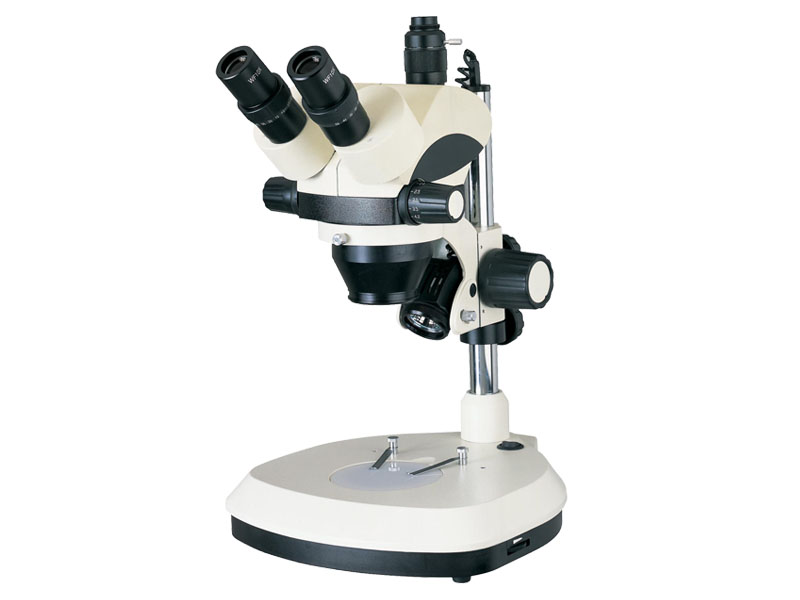

Binocular Zoom Microscope SM1/2/3/4 Series
Model：Binocular Zoom Microscope SM1/2/3/4 Series
Category：Stereo Microscope
Brand：Oi-Instruments
Contact name：Orlenda Tan
Telephone：18962123364
Email：orlenda@oi-instruments.com
SM-1/2/3/4 series stereo zoom microscopes are a kind of positive image microscope, they are adopted horizontal knob to zoom control, they have long working distance, clear and smooth image quality, wide field, convenience operation etc. They can be used for culture and education, scientific research, farming and forestry, electronics and precision machine industries widely.
Features
▲ Eyepieces field is wide and clear.
▲ Objectives range of zoom magnification 0.7X~4.5X
▲ Optical tube, 45° inclination. can be rotated 360°, interpupillary distance and eyepieces diopter can be adjusted, interpupillary distance adjustable range from 55mm~75mm.

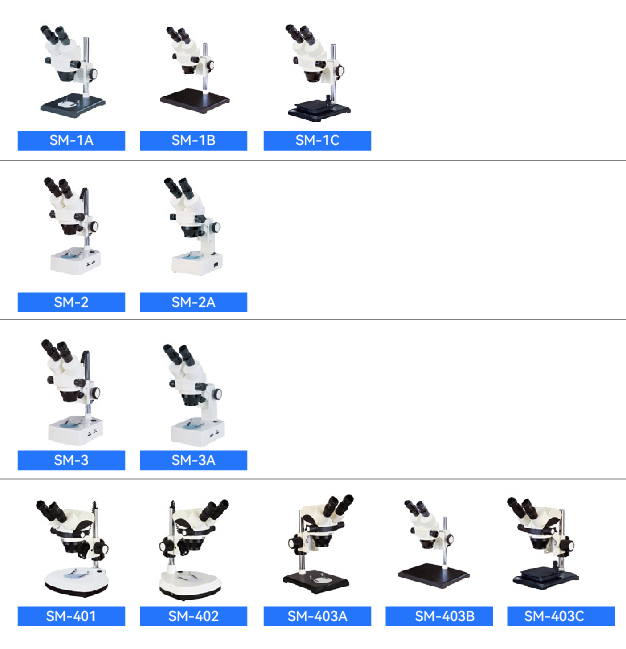

| Model | SM-1A | SM-1B | SM-1C | ||
| Eyepieces | WF10X (Φ20mm) | ||||
| Objective | Objectives range of zoom magnification 0.7X~4.5X | ||||
| Total magnification | 7X~45X | ||||
| Visual field | Φ28.5~Φ4.5 | ||||
| Working distance | 88mm | ||||
| Vertical effective movement | 25mm<=h<265mm | 25mm<=h<240mm | |||
| Base size | 240X180X25mm | 300X240X25mm | 240X180X25(mm)with movable stage, movement range:42X42(mm) | ||
| Model | SM-2 | SM-2A | |||
| Eyepieces | WF10X(Φ20mm) | ||||
| Objective | Objectives range of zoom magnification 0.7X~4.5X | ||||
| Total magnification | 7X~45X | ||||
| Visual field | Φ28.5~Φ4.5 | ||||
| Working distance | 88mm | ||||
| Vertical effective movement | 25mm<=h<265mm | 25mm<=h<130mm | |||
| Base size | 215X160X60mm | ||||
| Illumination model | Reflected light source:12V10W halogen lamp with reflector cup and adjustable brightness | ||||
| Model | SM-3 | SM-3A | |||
| Eyepieces | WF10X(Φ20mm) | ||||
| Objective | Objectives range of zoom magnification 0.7X~4.5X | ||||
| Total magnification | 7X~45X | ||||
| Visual field | Φ28.5~Φ4.5 | ||||
| Working distance | 88mm | ||||
| Vertical effective movement | 25mm<=h<265mm | 25mm<=h<130mm | |||
| Base size | 215X160X60mm | ||||
| Illumination model | Reflected light source:12V10W halogen lamp with reflector cup and adjustable brightness Transmitted light source:12V10W halogen lamp and adjustable brightness | ||||
| Model | SM-401 | SM-402 | |||
| Eyepieces | WF10X (Φ20mm) | ||||
| Objective | Objectives range of zoom magnification 0.7X~4.5X | ||||
| Total magnification | 7X~45X | ||||
| Visual field | Φ28.5~Φ4.5 | ||||
| Working distance | 88mm | ||||
| Vertical effective movement | 35mm<=h<215mm | 35mm<=h<265mm | |||
| Base size | 260X290X55mm | 300X240X25mm | |||
| Illumination model | Reflected light source:12V10W halogen lamp with reflector cup and adjustable brightness Transmitted light source:12V10W halogen lamp and adjustable brightness | Reflected light source:12V10W halogen lamp with reflector cup and adjustable brightness | |||
| Model | SM-403A | SM-403B | SM-403C | ||
| Eyepieces | WF10X (Φ20mm) | ||||
| Objective | Objectives range of zoom magnification 0.7X~4.5X | ||||
| Total magnification | 7X~45X | ||||
| Visual field | Φ28.5~Φ4.5 | ||||
| Working distance | 88mm | ||||
| Vertical effective movement | 35mm<=h<265mm | 35mm<=h<265mm | 35mm<=h<240mm | ||
| Base size | 240X180X25(mm) | 300X240X25mm | 240X180X25(mm)with movable stage, movement range:42X42(mm) | ||
