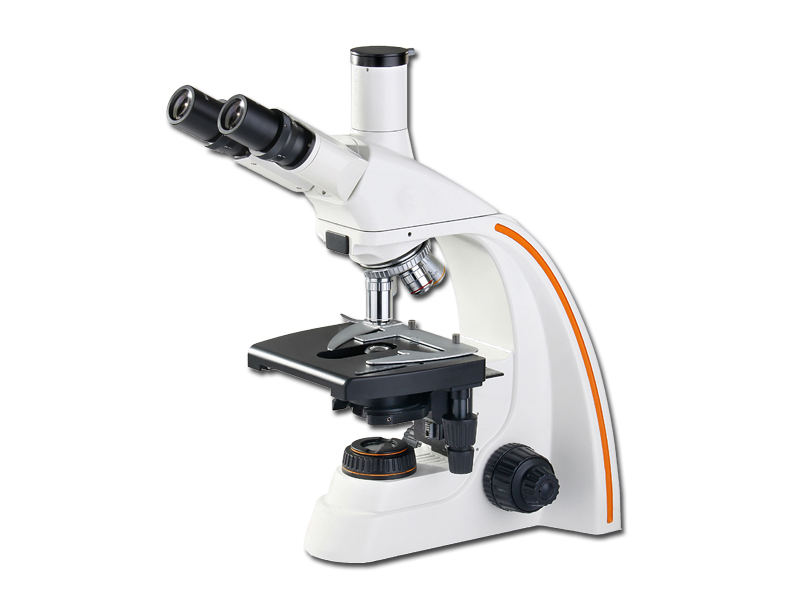

Infinity Plan Achromatic Biological Microscope BM2800
Model：Infinity Plan Achromatic Biological Microscope BM2800
Category：Biological Microscope
Brand：Oi-Instruments
Contact name：Orlenda Tan
Telephone：18962123364
Email：orlenda@oi-instruments.com
BM2800series biological microscope is equipped with excellent infinity plan achromatic objectives and wide field eyepieces. The ideal ergonomic design is adopted, such as low-lying focusing knobs, backward nosepiece and integrated handle, so that operate the instruments easier and have wider space, especially moving the instruments is better safety. They can be used for biology, medicine agriculture and industry area widely. They are the ideal instrument in medical treatment, teaching demonstration and scientific research.
▲ Adopted excellent optical system, equipped with excellent optical performance.
▲ The notions of design streamline figure and pastel color makes the microscope has more beautiful appearance.
▲ The appropriate design can make it update of increasing correlative accessories, for example, simple polarized system and phase contrast observation.
▲ Base on the human design, the microscope has the hand shank in the back of it, because of the design, you can easily take up the microscope and move it.
| Model | BM2800 | |
| Eyepiece | Wide field WF10X(Ф22mm) | |
| Objective | Infinity plan achromatic objective | |
| PL 4X/0.10 | ||
| PL 10X/0.25 | ||
| PL 40X/0.65 (Spring) | ||
| PL 100X/1.25 (Spring, oil) | ||
| Eyepieces tube | Trinocular, Inclination of 30˚. | |
| Focus system | Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm. | |
| Nosepiece | Quardruple(Backward ball bearing inner locating) | |
| Stage | Double layer mechanical (Size:180mmX150mm,movingrange:75mmX50mm) | |
| Transmitted illumination system | Abbe condenser NA.1.25 Rack & pinion adjustable | |
| Blue filter and Ground glass | ||
| 3W LED,brightness adjustable | ||
Optional accessories
<
| Eyepiece | Dividing eyepiece(field number:Ф22mm) 0.10mm/Div | |
| Objective | Infinity plan achromatic objective | |
| PL 20X/0.40 (Work distance)：8.8 mm | ||
| PL 60X/0.85 (Work distance)：0.25mm | ||
| Phase contrast unit | Eyepiece | Centering telescope |
| Objectives | Infinity phase contrast plan achromatic 10X/0.25 PHP | |
| Infinity phase contrast plan achromatic 20X/0.40 PHP | ||
| Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring) | ||
| Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, oil) | ||
| Sliding phase contrast | ||
| Filter | Green filter | |
| Yellow filter | ||
