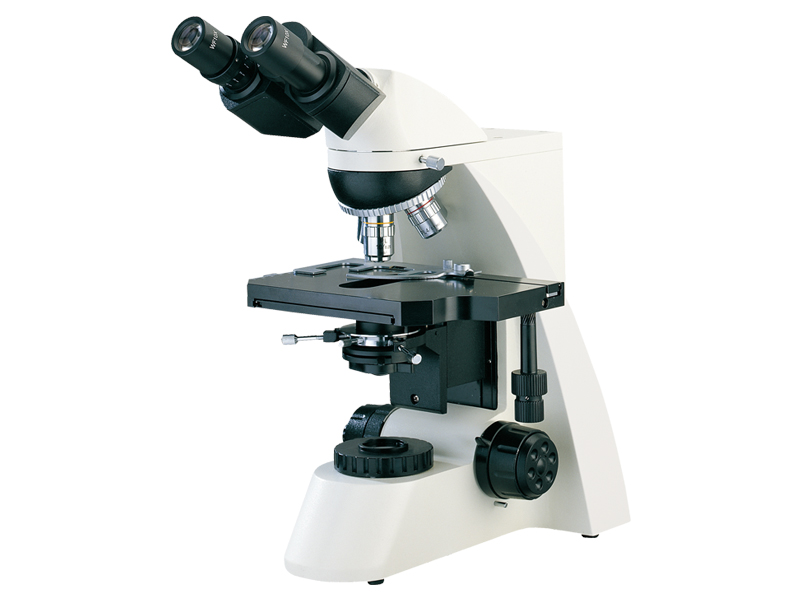

Plan Achromatic Binocular Biological Microscope BM3000
Model：Plan Achromatic Binocular Biological Microscope BM3000
Category：Biological Microscope
Brand：Oi-Instruments
Contact name：Orlenda Tan
Telephone：18962123364
Email：orlenda@oi-instruments.com
BM3000series biological microscope is equipped with plan achromatic objectives and wide field eyepieces. It provides clear image, wide field, convenience operation. It can be used for biology medicine agriculture and industry area widely. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.
Standard Configuration
| Model | BM3000A | BM3000B |
| Eyepiece | WF10X(Φ20mm) | |
| Objective | Plan achromatic PL 4X/0.10 | Plan achromatic PL 4X/0.10 |
| Plan achromatic PL 10X/0.25 | Plan achromatic PL 10X/0.25 | |
| Plan achromatic PL 20X/0.40 | ||
| Plan achromatic PL 40X/0.65(Spring) | Plan achromatic PL 40X/0.65(Spring) | |
| Plan achromatic PL 100X/1.25(Spring, oil) | Plan achromatic PL 100X/1.25(Spring, oil) | |
| Eyepiece tube | Binocular(Inclination of 30˚) | |
| Focus system | Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing: 2μm. | |
| Nosepiece | Quadruple(Backward ball bearing inner locating) | Quintuple(Backward ball bearing inner locating) |
| Stage | Double layer mechanical (Size:210mmX140mm, Move range: 75mmX50mm) | |
| Abbe condenser | N.A.1.25 Rack & pinion adjustable | |
| Filter | Blue filter | |
| Frosted filter | ||
| Collector | For halogen lamp | |
| Light source | 6V 20W Halogen lamp with brightness control | |
Optional accessories
| Name | Sort/Technique parameter | |
| Eyepiece | WF16X(Φ11mm) | |
| Dividing10X(¦µ20mm),0.1mm/Div | ||
| Eyepiece tube | Trinocular | Inclination of 30˚ |
| Filter | Green filter | |
| Yellow filter | ||
| Condenser | Dark field | Dry |
| Immersion | ||
| Phase contrast unit | Eyepiece | Centering telescope |
| Objectives | Phase contrast plan achromatic 10X/0.25 PHP | |
| Phase contrast plan achromatic 20X/0.40 PHP(Spring) | ||
| Phase contrast plan achromatic 40X/0.65 PHP(Spring) | ||
| Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil) | ||
| Turnplate phase contrast condenser(PH-¢ñ) | ||
| Turnplate phase contrast condenser(PH-¢ò) | ||
| Flashboard phase contrast condenser | ||
| Pull board phase contrast condenser | ||
| Infinity optical system | Eyepiece tube | Binocular (Inclination of 30˚) |
| Trinocular (Inclination of 30˚) | ||
| Eyepiece | Centering telescope | |
| Objectives | Infinity plan achromatic 4X/0.10 | |
| Infinity plan achromatic 10X/0.25 | ||
| Infinity plan achromatic 20X/0.40 | ||
| Infinity plan achromatic 40X/0.65(Spring) | ||
| Infinity plan achromatic 100X/1.25(Spring, oil) | ||
| Infinity phase contrast plan achromatic 10X/0.25 PHP | ||
| Infinity phase contrast plan achromatic 20X/0.40 PHP | ||
| Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring) | ||
| Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, oil) | ||
