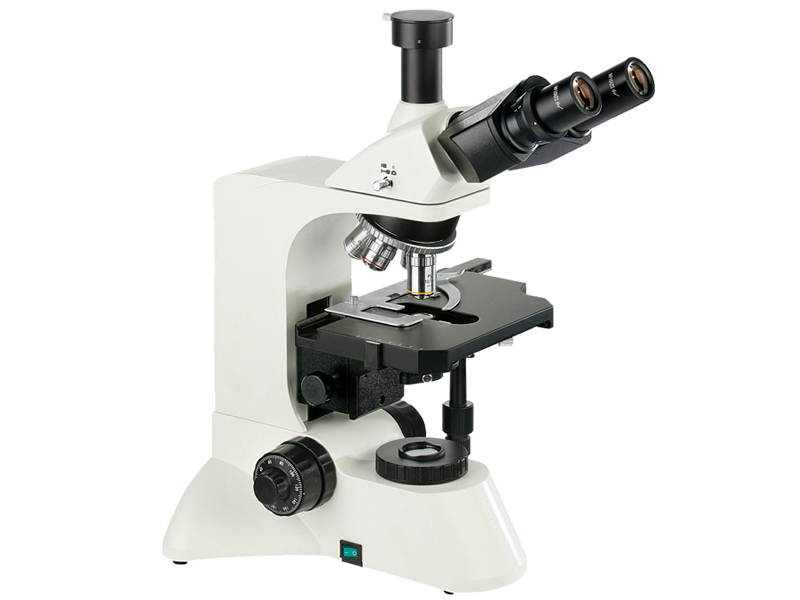

Infinity Plan Achromatic Biological Microscope BM3200
Model：Infinity Plan Achromatic Biological Microscope BM3200
Category：Biological Microscope
Brand：Oi-Instruments
Contact name：Orlenda Tan
Telephone：18962123364
Email：orlenda@oi-instruments.com
BM3200 series biological microscopes are equipped with infinity plan achromatic objectives and wide field eyepieces. They have beautiful sculpt andprovide clear image, wide field, convenience operation. They can be used for biology medicine agriculture and industry area widely. They are the idealinstrument in medical treatment, teaching demonstration and scientific research.
▲ Trinocular can be observation for eyepieces and microphotography in 100% light flux, suits for low illuminance microphotography.
| Model | BM3200 | |
| Eyepiece | WF10X(¦Φ22mm) | |
| Objective | Infinity plan achromatic objective | |
| PL 4X/0.10(Work distance)：21 mm | ||
| PL 10X/0.25(Work distance)：5.0mm | ||
| PL 40X/0.65(Spring)(Work distance)：0.66 mm | ||
| PL 100X/1.25(Spring, oil)(Work distance)： 0.36mm | ||
| Eyepiece tube | BM3200 | Binocular (Inclination of 30˚) |
| BM3200C | Trinocular(Inclination of 30˚) | |
| Focus system | Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing: 2μm. | |
| Nosepiece | Quadruple(Backward ball bearing inner locating) | |
| Stage | Double layer mechanical (Size:210mmX140mm,Move range: 75mmX50mm) | |
| Abbe condenser | N.A.1.25Rack & pinion adjustable | |
| Filter | Blue filter | |
| Frosted filter | ||
| Collector | For halogen lamp(With field diaphragm ) | |
| Light source | 6V 30W Halogen lamp with brightness control | |
Optional Accessories
| Name | Sort/Technique parameter | |
| Eyepiece | Dividing eyepiece(field number:Φ22mm) 0.10mm/Div | |
| Objective | Infinity plan achromatic objective | |
| PL 20X/0.40(Work distance)：8.8 mm | ||
| PL 60X/0.85(Work distance)：0.25mm | ||
| Nosepiece | Quintuple(Backward ball bearing inner locating) | |
| Filter | Green filter | |
| Yellow filter | ||
| Condenser | Dark field | Dry type |
| Immersion type | ||
| Phase contrast unit | Eyepiece | Centering telescope |
| Objectives | Infinity phase contrast plan achromatic 10X/0.25 PHP | |
| Infinity phase contrast plan achromatic 20X/0.40 PHP | ||
| Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring) | ||
| Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, oil) | ||
| (PH-Ⅰ ) Turnplate phase contrast condenser | ||
| (PH-Ⅱ) Turnplate phase contrast condenser | ||
| Flashboard phase contrast condenser | ||
| Pull board phase contrast condenser | ||
